Microelectronics | Toshiba XM-5401B SCSI CD-ROM Drive

Synopsis

An old four-speed SCSI CD-ROM drive that wasn't even ejecting the tray. It was detected by the SCSI host adapter, but there was no way I could use it at all. I assumed it could be salvaged; thus, I gave it a try.

Disclaimer
This article is not to be treated as a do-it-yourself tutorial on how to fix, restore, rebuild, or improve this unit. This was not my initial intention. But you can consider this whole content as a general guideline, should you decide to attempt any service procedure on an identical or similar unit.

The entire documentation is just a reflection of my work and I cannot be held responsible if you damage your unit, or even harm yourself in the process.

Maintenance

First, I cleaned everything (electronics, plastic parts, plastic gears, but not the motors) with soapy water in the sink. Then I let the parts dry completely. Next, I used some isopropyl alcohol to finish the cleaning phase.

In terms of electronic parts, I replaced all electrolytic capacitors with modern solid polymer capacitors. Then I moved on to reassembling of all geared systems and finally lubed everything with silicon grease.

In total, I spent about two full evenings on this project. But it works great in the end. The operation is so smooth and flawless. In addition, being a slow drive, it doesn't produce audible noise.

Pictures

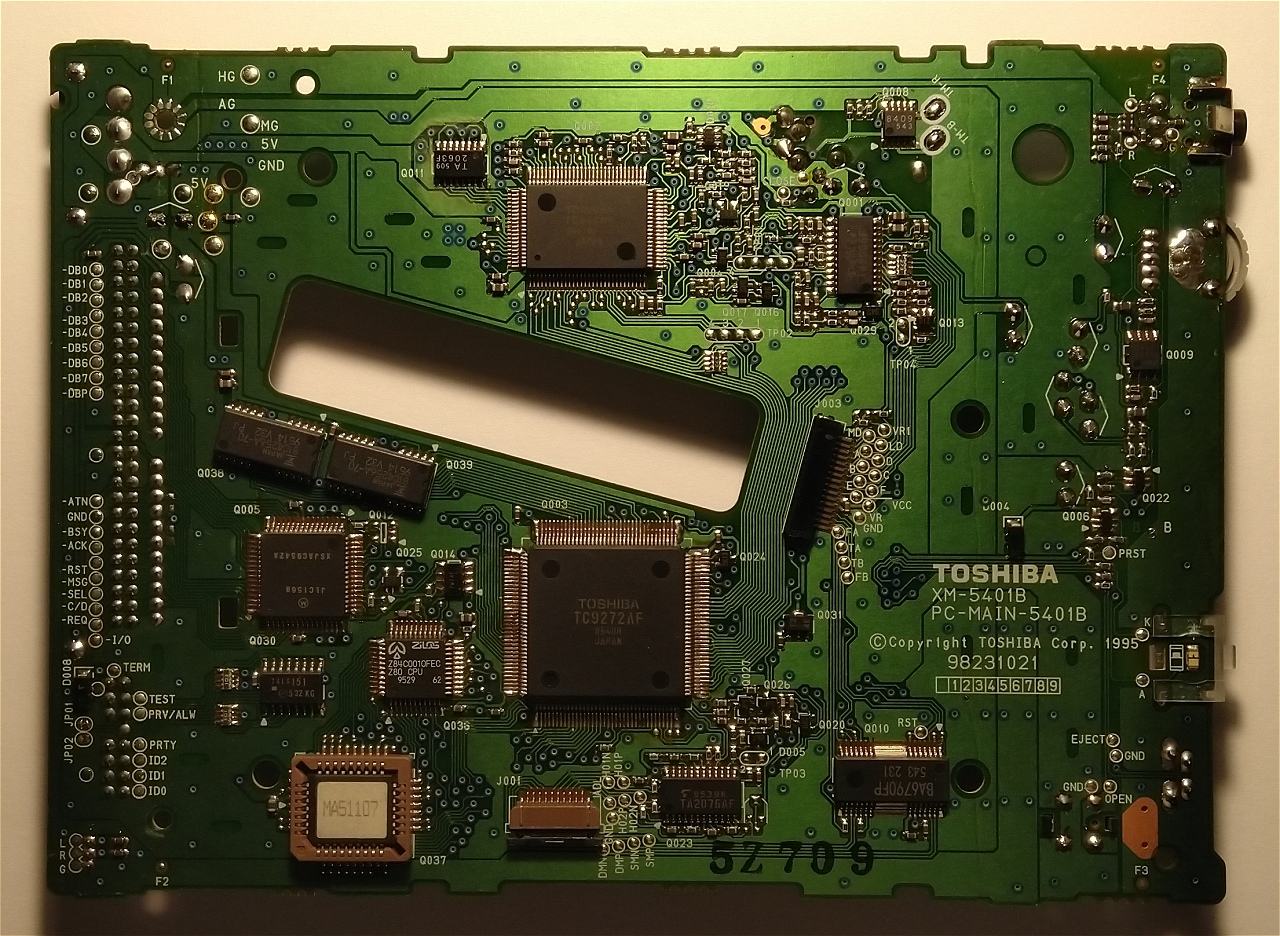

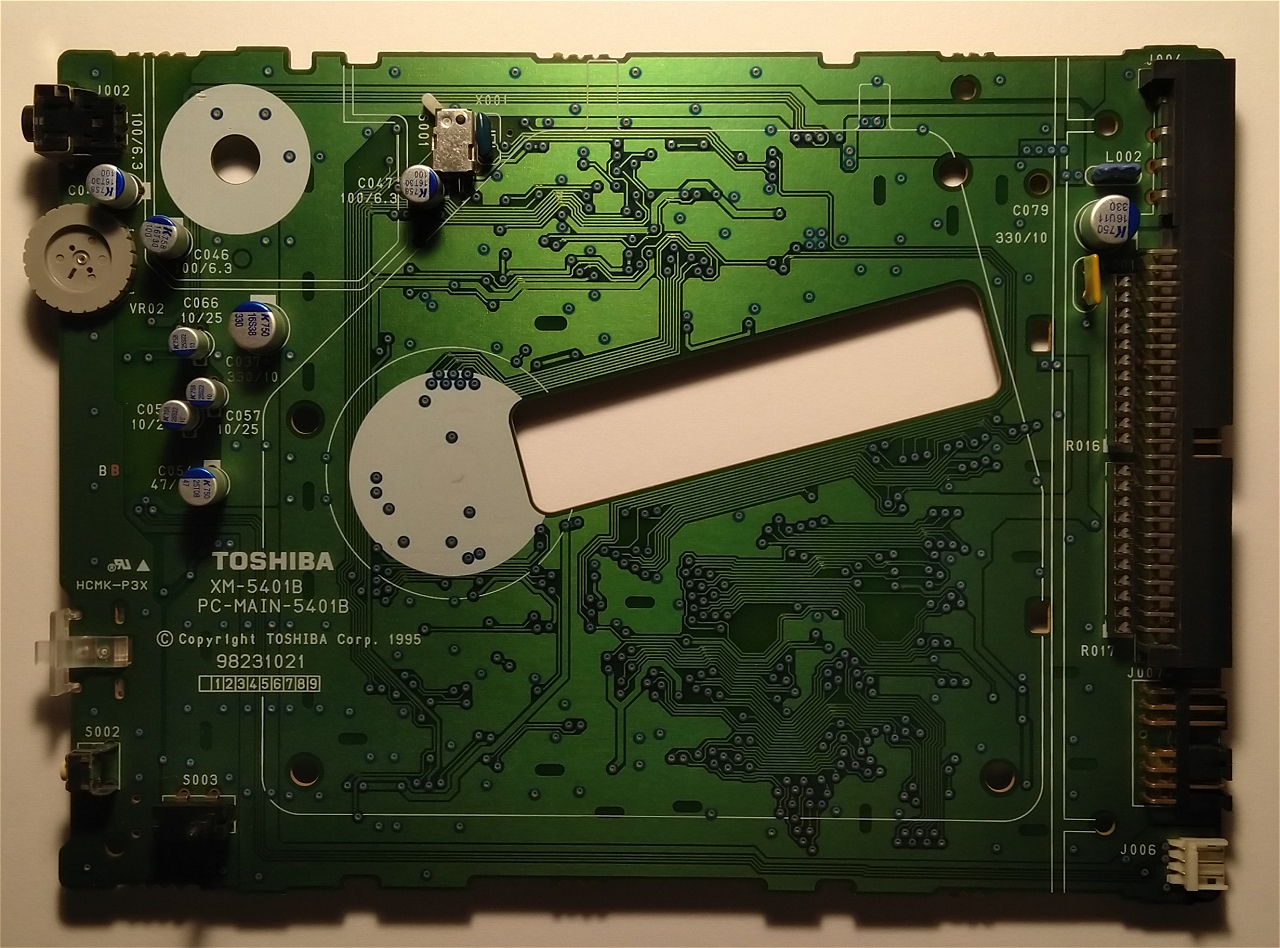

Here are some pictures that I took during this operation. Unfortunately there are no initial state pictures. This unit was so dirty (in fact, it was filthy) that I haven't even considered taking before pictures.

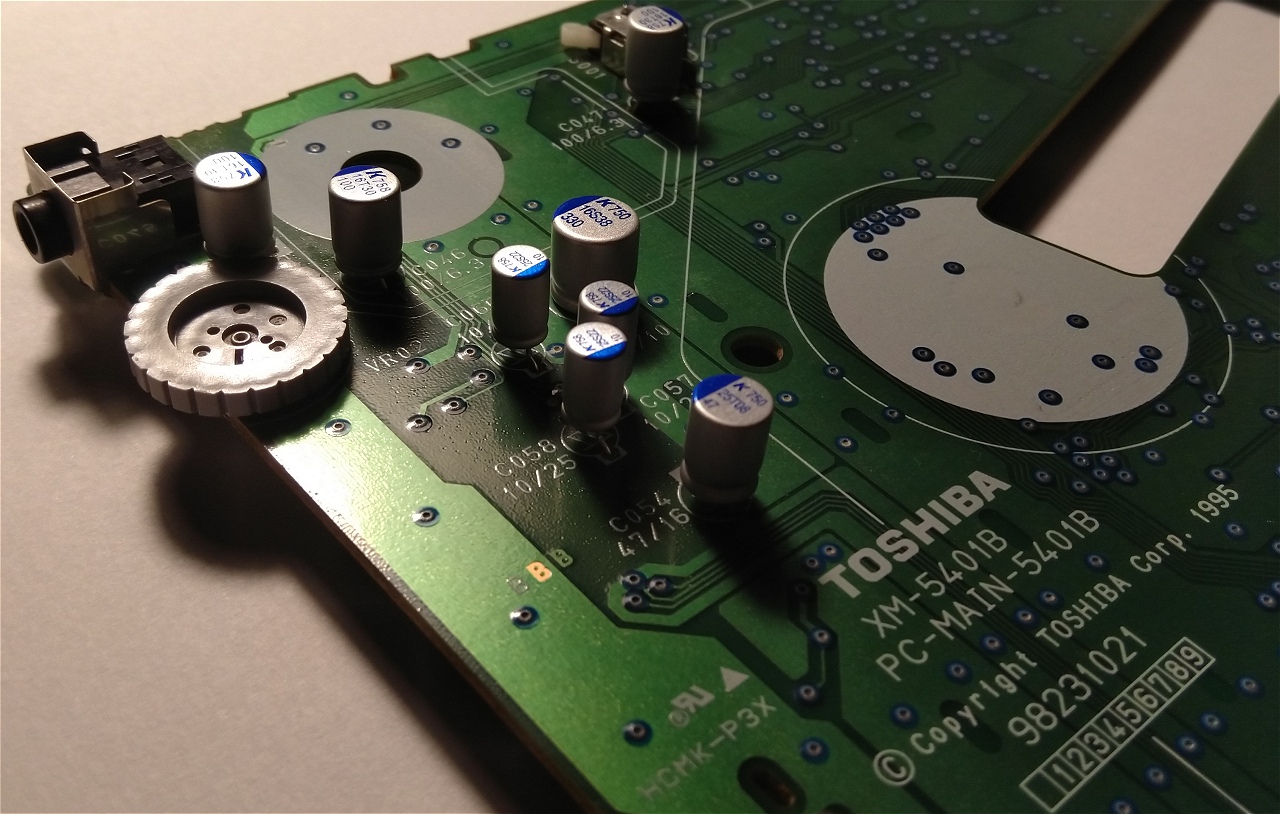

The new capacitors fit like a glove.

I like the looks; so '90s.

The CD-ROM drive works great. It reads most burned CDs and all audio CDs. It will be doing service in one of my retrocomputers.
